Product Name

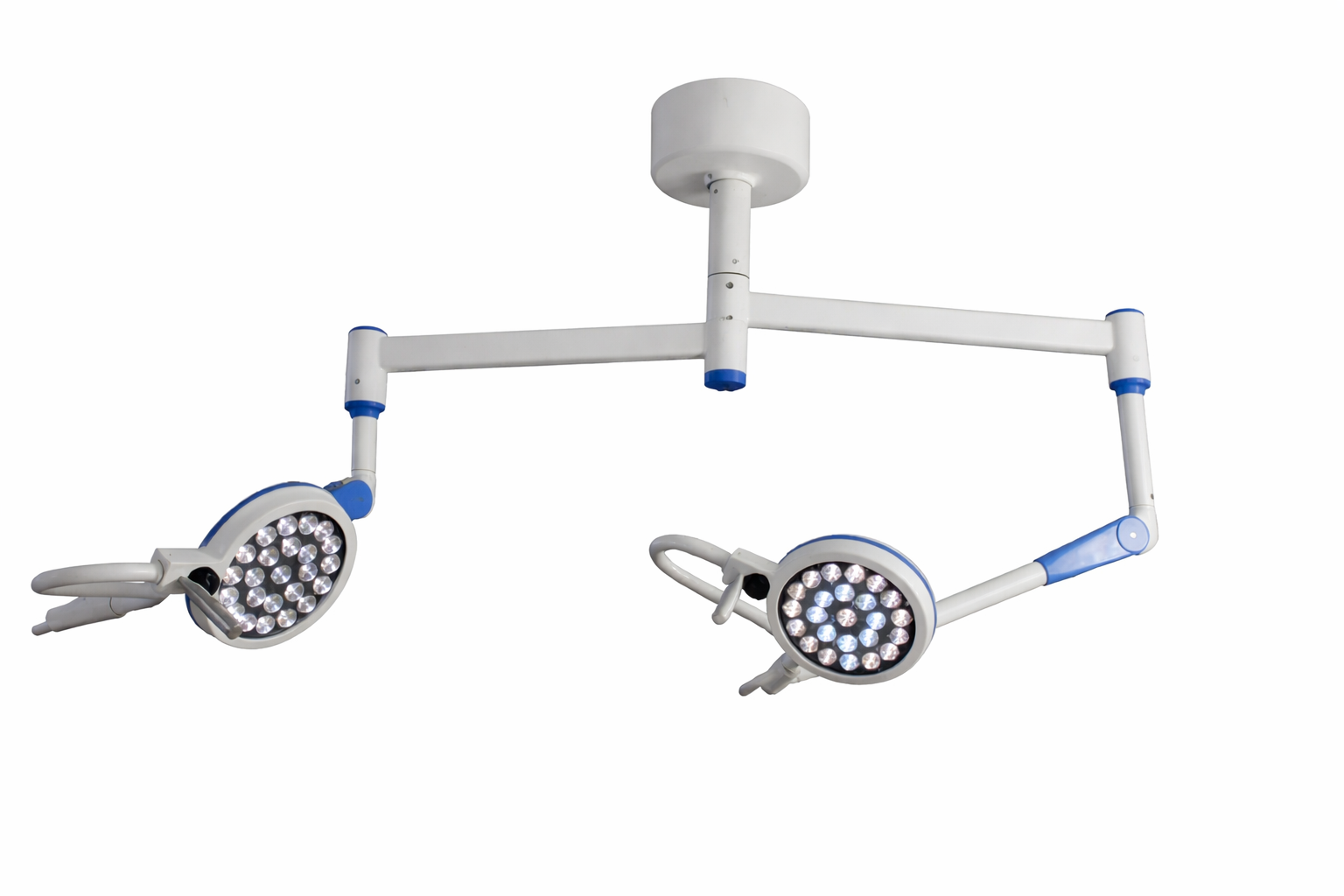

Micro Ceiling Double Dome
Product Quality
Best Solution for minor OT/Dermatology, hair & Skin Clinic, OPD’S
Product Description
LED Examination Light with intensity of 100000 LUX & 4300 Kelvin (day light). The entire body is made of Aluminum. It comes with a metallic sterile handle for easy positioning of light head. Anti static castors with brakes for better stability.
Technical Data
• Intensity : 160000 Lux +160000 Lux
• CCT : 3500K – 5000 Kelvin
• CRI : 93rA += 5rA
• LEDs : 60 + 60 German LEDs
• Focus: Adjustable 100mm-250mm
• LED Life: >= 50000 hours
• Control Panel : Digital with Wireless remote
• Power Supply : 220V/ 50Hz AC (Hearwell Taiwan)
Technical Data
• Intensity : 140000 Lux +140000 Lux
• CCT : 3500K – 5000 Kelvin
• CRI : 93rA += 5rA
• LEDs : 48 + 48 German LEDs
• Focus: Adjustable 100mm-250mm
• LED Life: >= 50000 hours
• Control Panel : Digital with Wireless remote
• Power Supply : 220V/ 50Hz AC (Hearwell Taiwan)
Technical Data
• Intensity : 100000 Lux +100000 Lux
• CCT : 3500K – 5000 Kelvin
• CRI : 93rA += 5rA
• LEDs : 36 + 36 German LEDs
• Focus: Adjustable 100mm-250mm
• LED Life: >= 50000 hours
• Control Panel : Digital with Wireless remote
• Power Supply : 220V/ 50Hz AC (Hearwell Taiwan)
Product Name

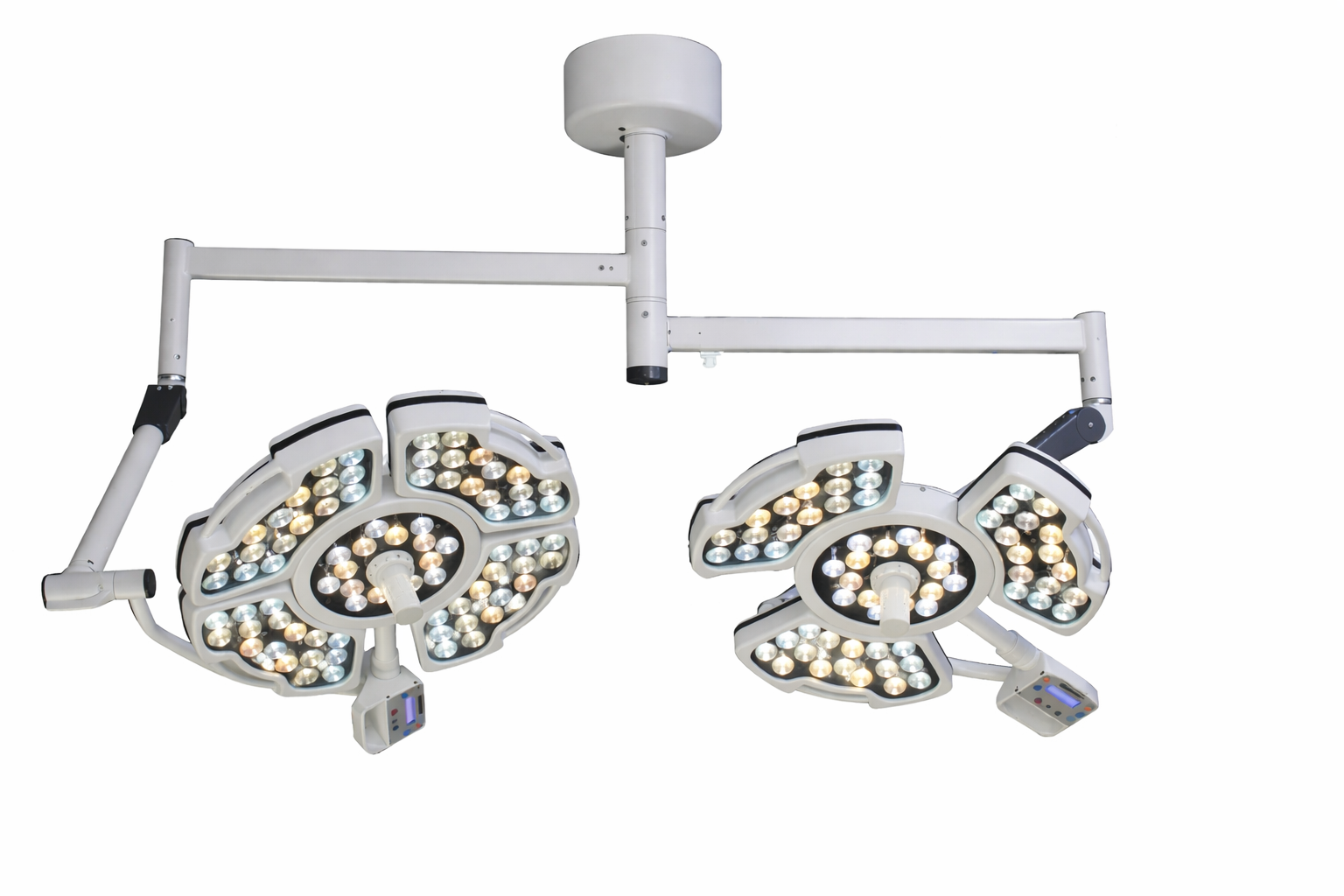

Petal Ceiling Double Dome (LED Shadowless Surgical Lamps)
Special features
•Laminar Flow Compatible
• HD Optics
• Aerodynamics Design
• Endoscopy and surgical mode
Technical Data
• Intensity: 120000 Lux
• CCT : 3500K – 5000 Kelvin
• CRI: 93rA =+ 5 rA
• LEDs: 64 German LEDs
• Focus: Fixed
• LED Life: >= 50000 Hours
• Control Panel: Digital with window remote
• Power Supply: 220V / 50Hz AC
Technical Data
• Intensity: 160000 Lux
• CCT : 3500K – 5000 Kelvin
• CRI: 93rA =+ 5 rA
• LEDs: 80 German LEDs
• Focus: Fixed
• LED Life: >= 50000 Hours
• Control Panel: Digital with window remote
• Power Supply: 220V / 50Hz AC
Product Name

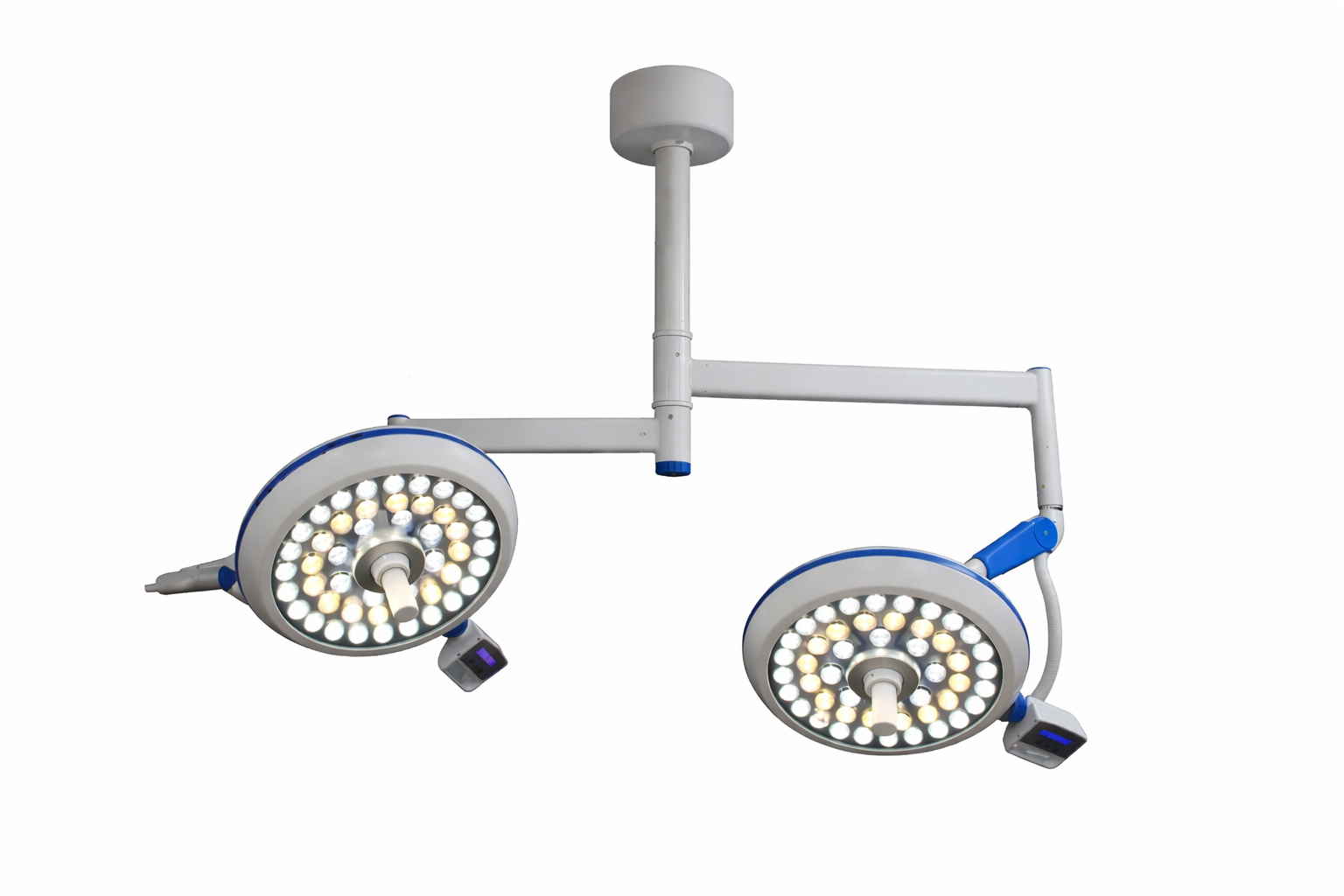

Macro Ceiling Double Dome (Truly Shadowless)
Special Features
• Wireless Remote
• Adjustable Focus
• Aluminum Dome
• Glare Free Design
• Endoscopy Mode
Product Name

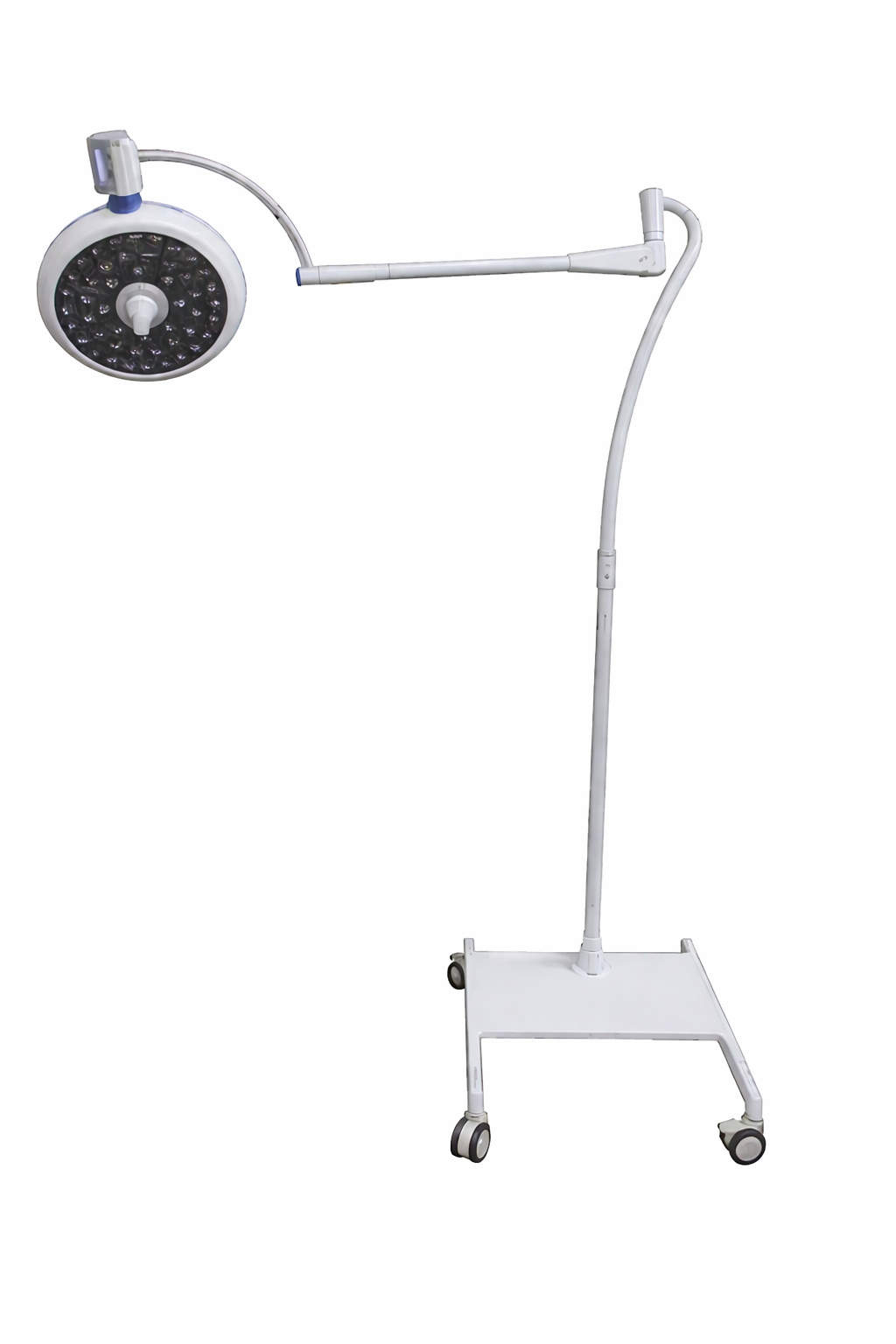

Macro 500 M
Technical Data
•Intensity: 150000 + 150000 Lux
• Focus: 100 – 250mm
• CRI: 95 rA
• CCT: Variable 3500-5200 Kelvin
• Modes: Endoscopy Mode/ Surgical Mode
• Controller: Digital Feather Touch with wireless reNo. of LEDs: 48 + 48 LEDs
• Arms: Hassel Free 360 degree rotation
Technical Data
•Intensity: 150000 Lux
• Focus: 100 – 250mm
• CRI: 95 rA
• CCT: Variable 3500-5200 Kelvin
• Modes: Endoscopy Mode/ Surgical Mode
• Controller: Digital Feather Touch with wireless remote
• No. of LEDs: 48 German LEDs
• Arms: Hassel Free 360 degree rotation
Product Name

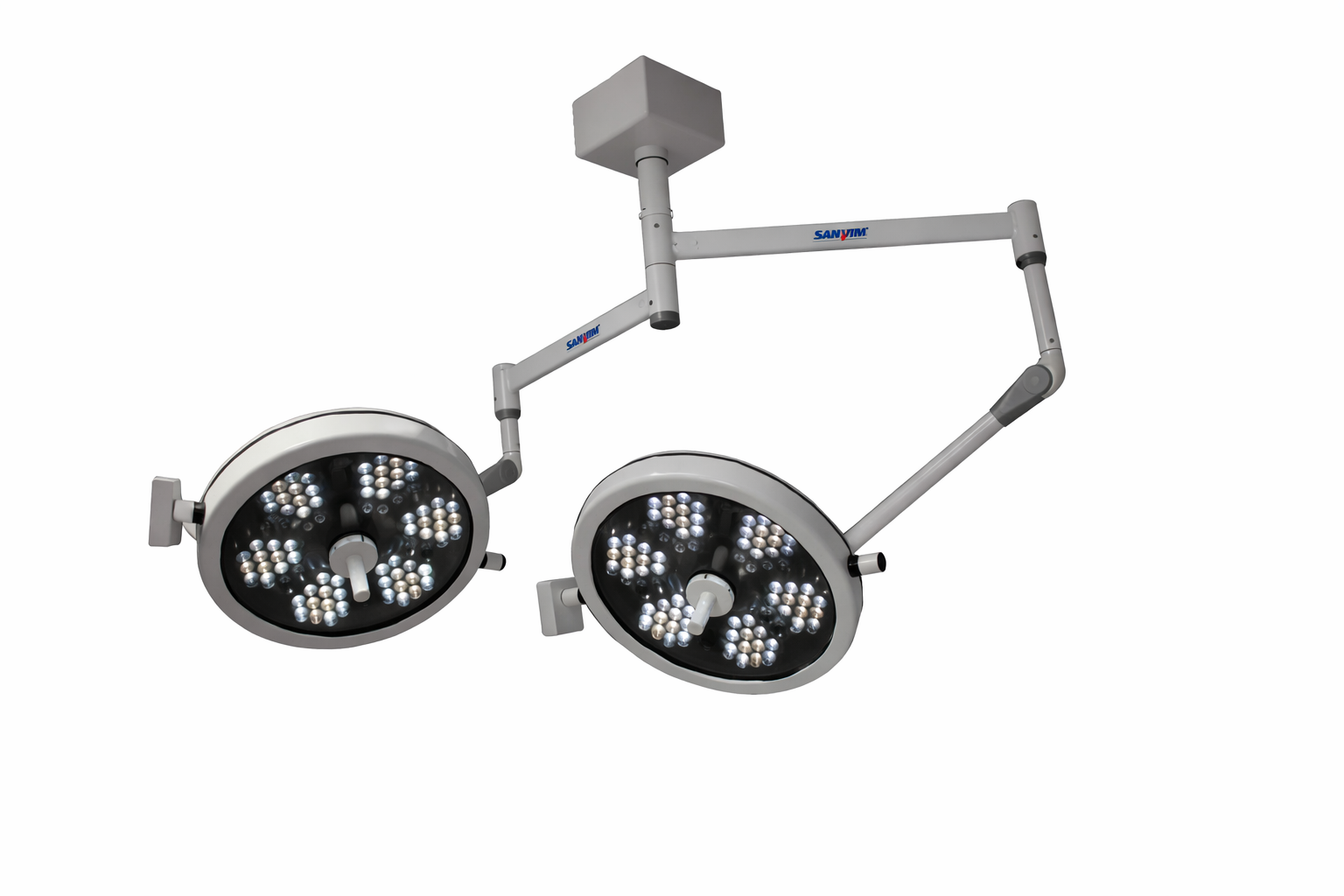

Glow Ceiling Double Dome (Shadowless Surgical Lamps)
Technical Data
• Intensity: 160000 Lux (Each Dome)
• CCT: 3500-5000 Kelvin
• CRI: 93rA += 5rA
• LEDs: 72 German LEDs(3 colour combination)
• Focus: Adjustable 100mm – 250mm
• LED Life: >= 50000 Hours
• Control Panel: Digital with wireless remote
• Power Supply: 220V/ 50 Hz AC (Hearwell Taiwan)
Product Name

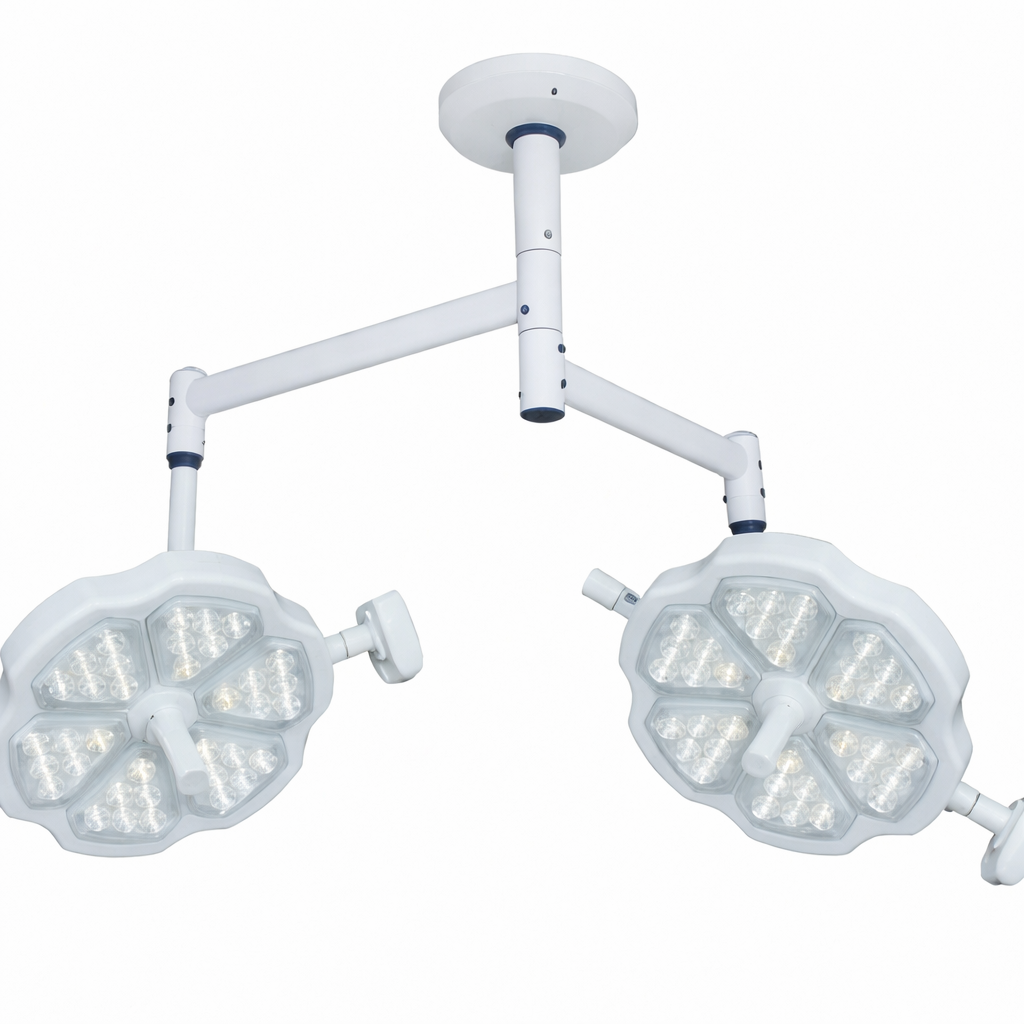

Model: Six Sigma Ceiling Double Dome
Technical Data
• Intensity: 130000 * 2 Lux
• CCT: 3800 – 5200 Kelvin
• Depth illumination: 10 – 15 cm
• Focus: Fixed
• LED Life : >= 50000 Hours
• Spot Diameter: 450-500mm
• Power Supply: 220V / 50Hz AC
• No. of LEDs: 36*2 German LEDs
• Intensity Control: 10 – 100 Digital
• Power : 60 Watt * 2
• Diameter of Light: 470mm * 2
Product Name

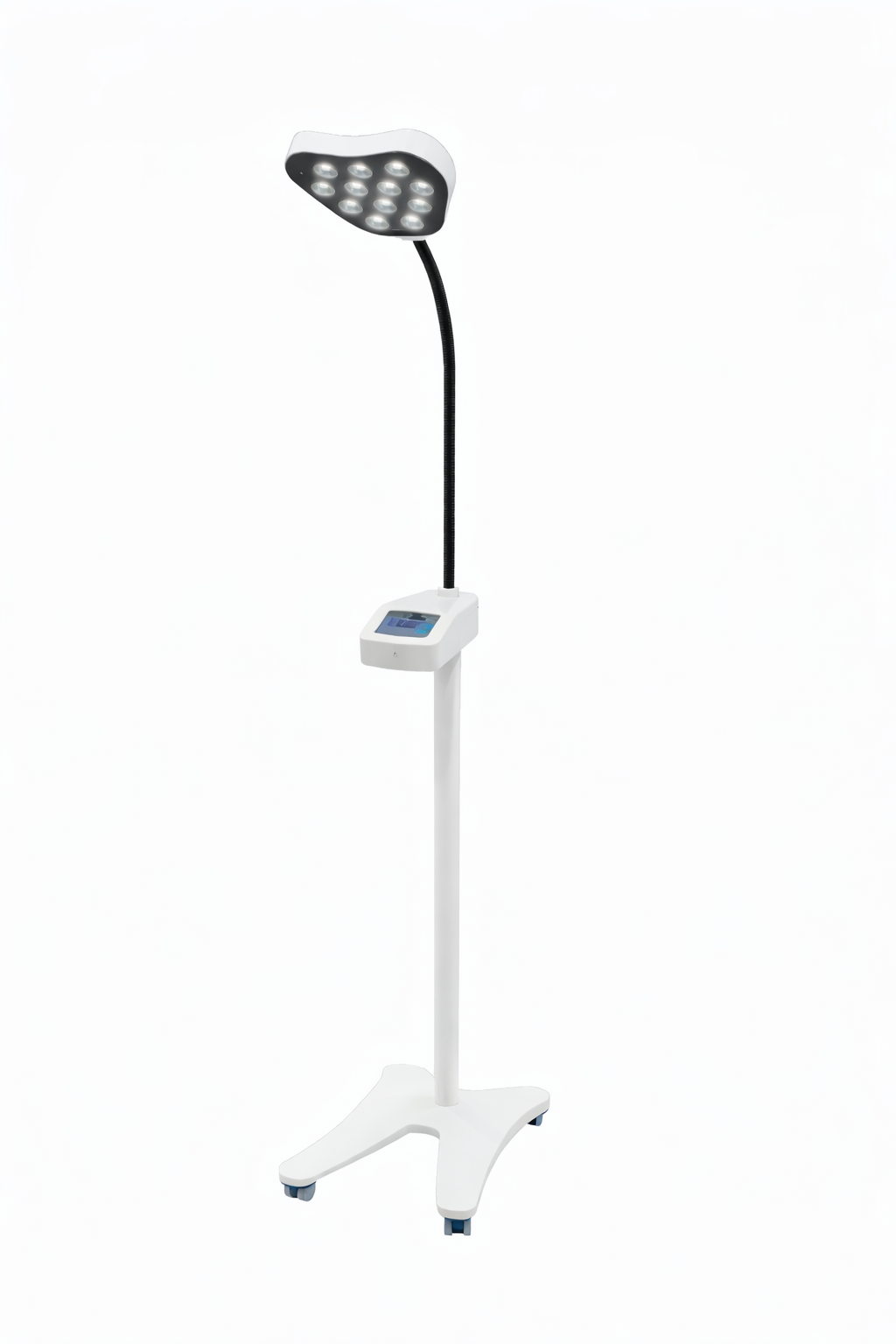

Apple Spot Examination Light
Technical Data
• Intensity: 50000 Lux
• CCT: 4350 Kelvin
• CRI: 95rA
• Depth illumination: 10 – 15 cm
• Focus: Fixed
• LED Life: >= 50000 Hours
• Spot Diameter: 200 mm
• Power Supply: 220V/ 50 Hz AC
• No. Of LEDs: 12
•German LEDs
• Intensity Control: 10 – 100 Digital
• Power: 12 Watt
• Diameter of Light: 200 mm
